Agriprom Manure Separator Pro-2 Series

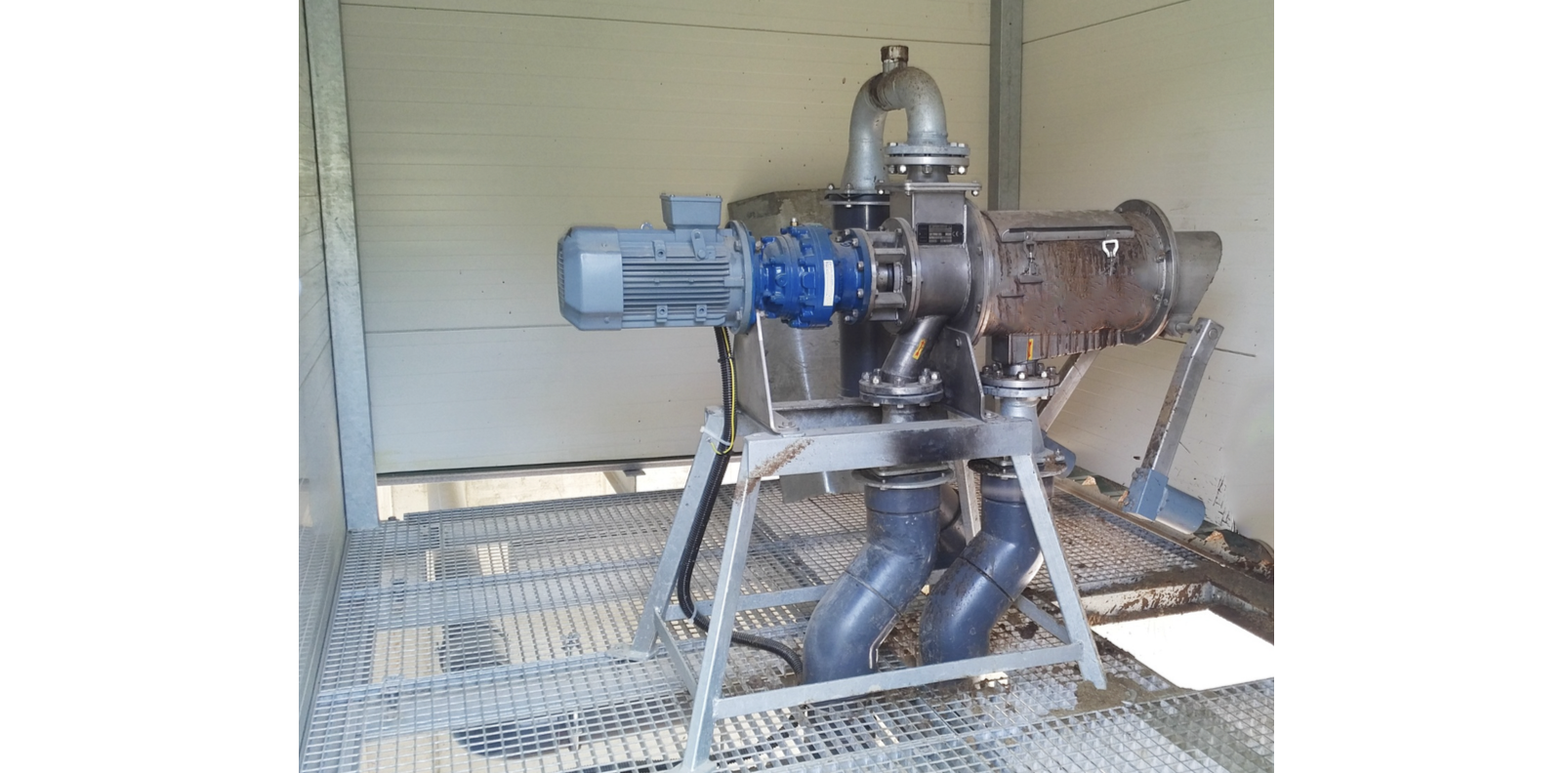

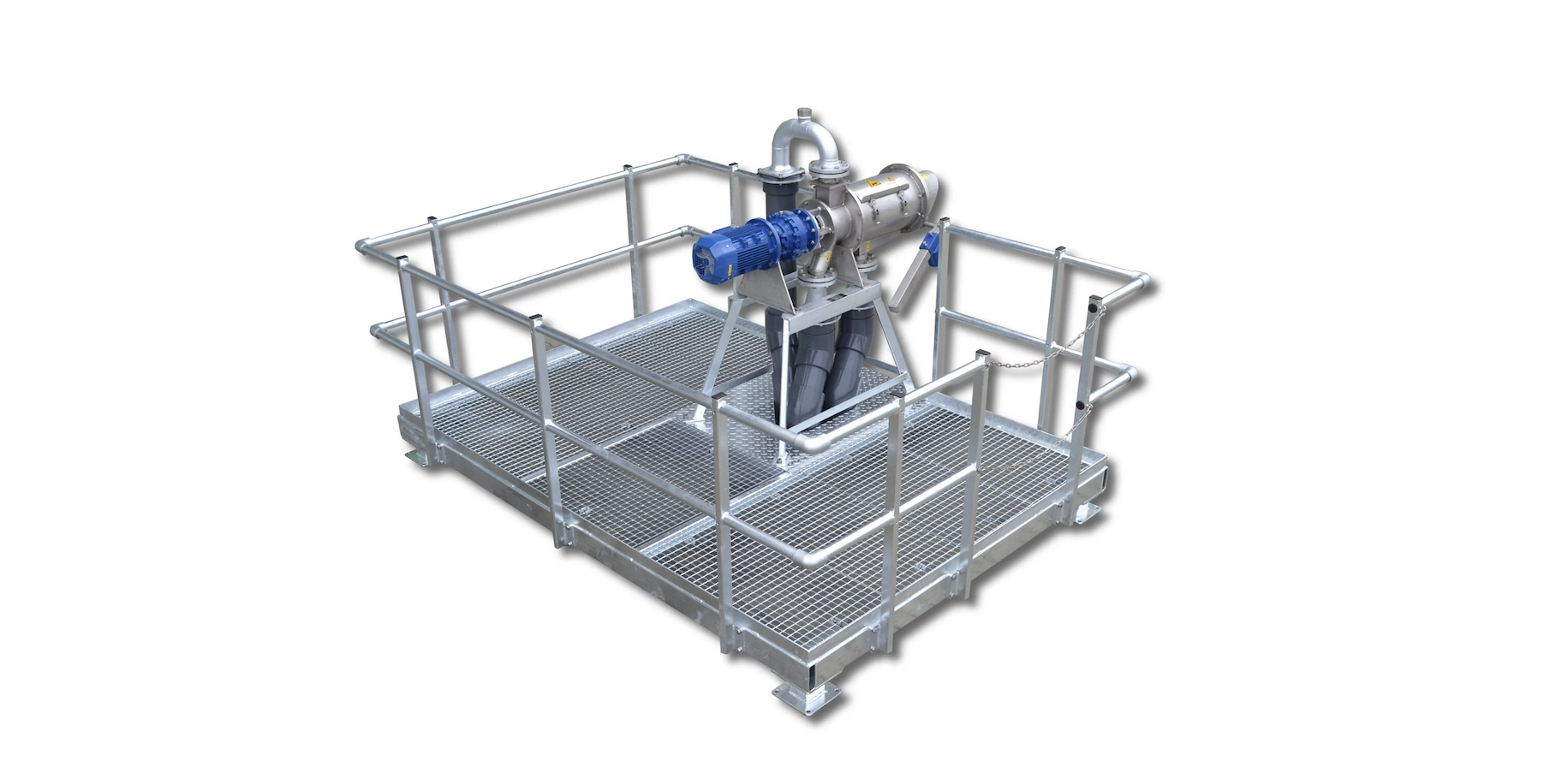

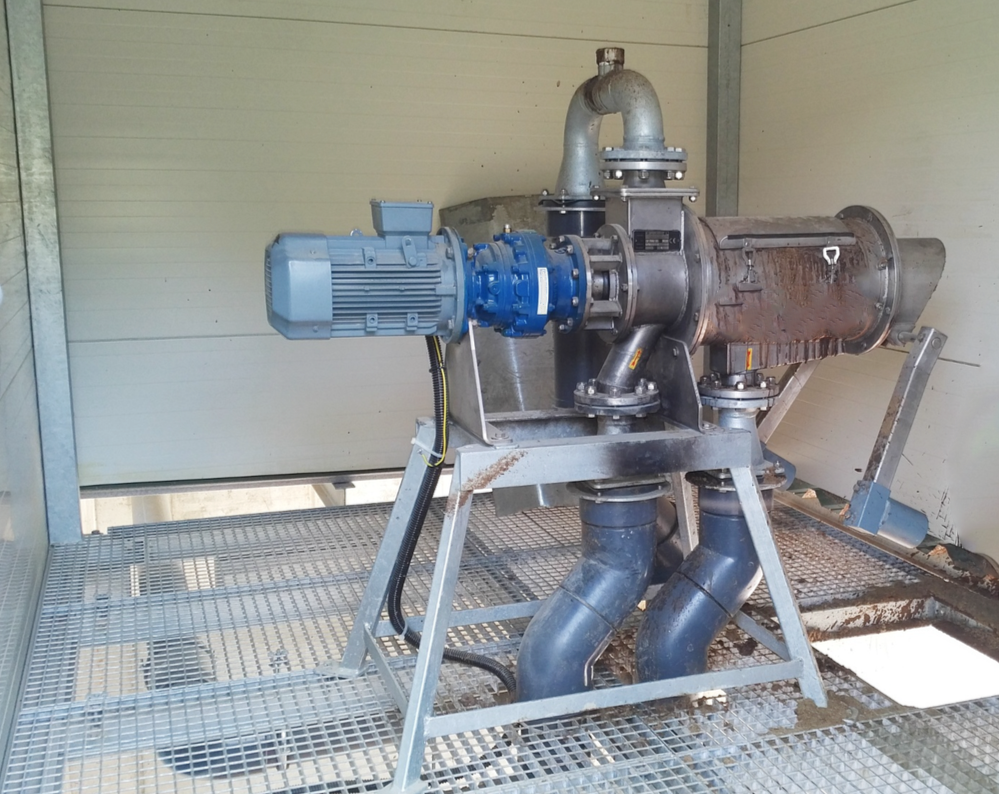

The Manure Separator Pro-2 Series is a precision-engineered screw press system constructed from high-grade stainless steel across all primary components in contact with slurry. Designed to process raw liquid manure and biogas substrates, this unit separates liquid and solid fractions within an operating range that achieves a higher dry mass content than standard drum screen squeezers. The design incorporates a reinforced stainless steel screw auger rotating within a heavy-duty cylindrical wedge wire screen to maximize processing efficiency.

TECHNICAL SPECIFICATIONS

Motor Nominal Power: 4.0 kW
Electrical Parameters: 400 V, 50 Hz with an integrated cos-monitor monitoring relay
Throughput Capacity: Up to 15 cubic meters per hour depending on substrate consistency
Screen Dimensions: 200 mm drum diameter with 1.5 mm slot gaps
Connection Interface: PN16 DIN2633 standard flanges for inlet, liquid outflow, and overflow/return spigots
Structural Weight: 190 kg total assembly weight
Material Build: Stainless steel casing, screen, bolts, and reinforced auger screw mounted on a dedicated frame
