Agriprom Manure Separator Pro-6 series / Pro-10 Series

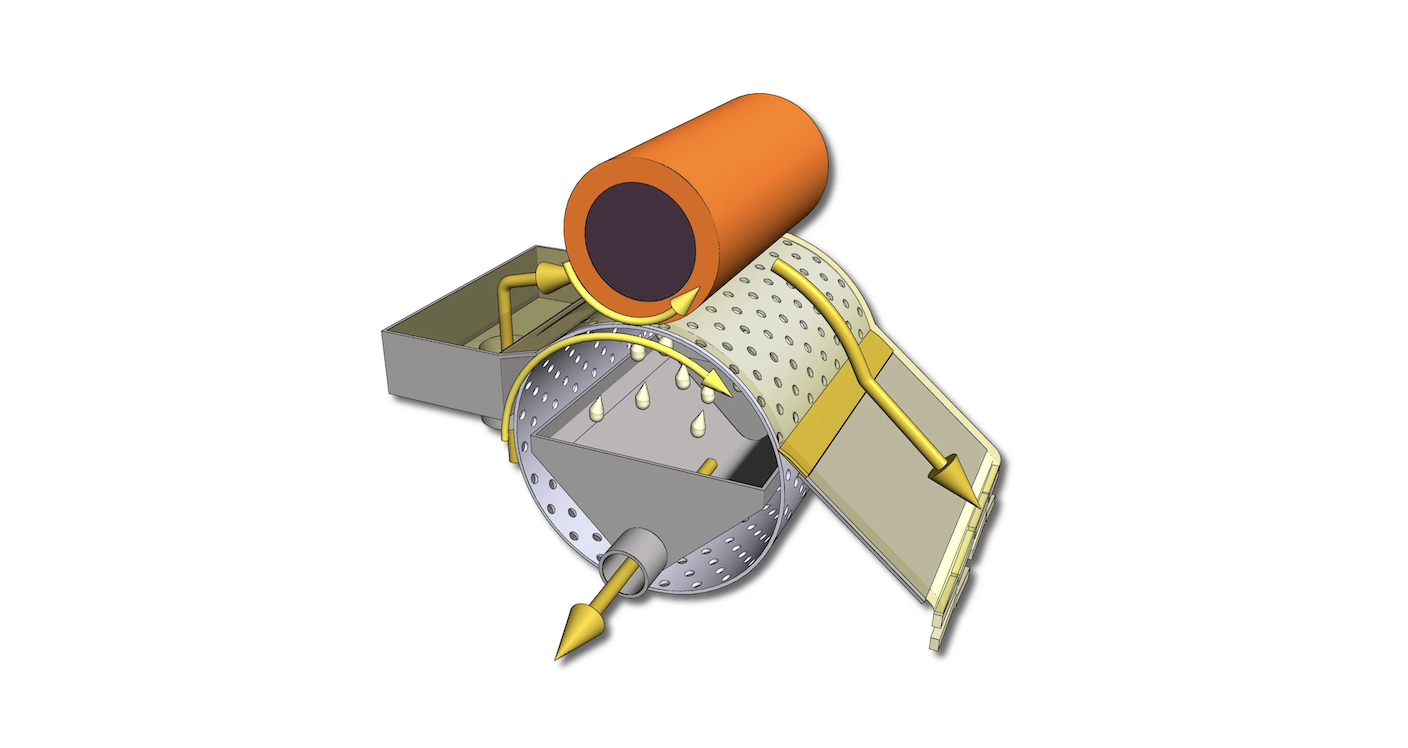

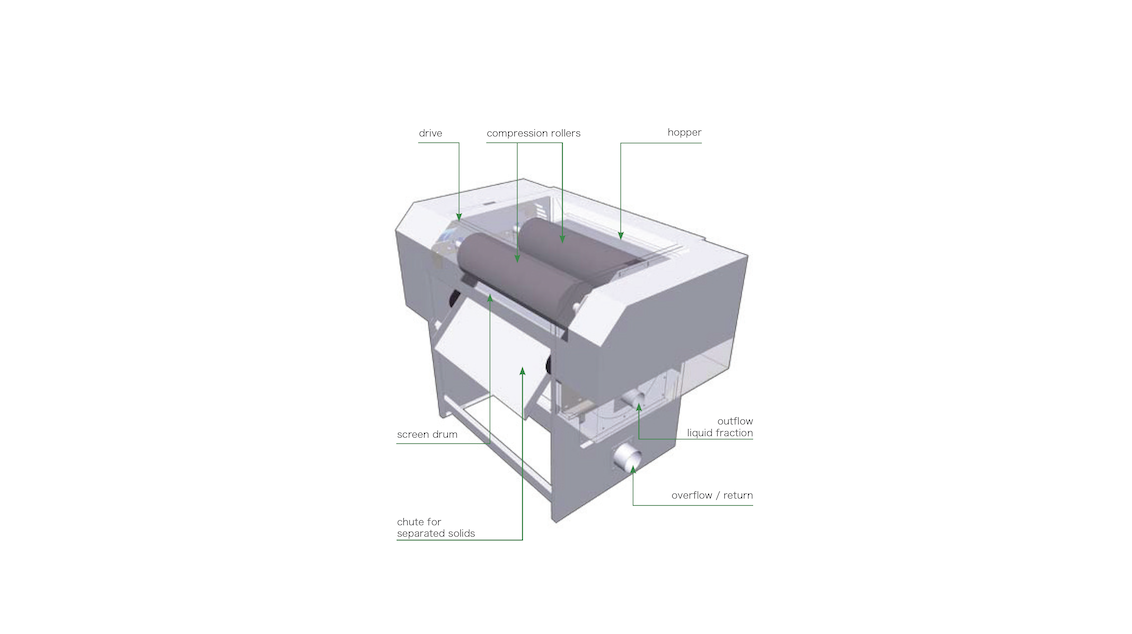

The Manure Separator Pro-6 & Pro-10 Series utilize a specialized rotating drum screen combined with compression rollers to process raw manure and biogas substrates at a high throughput with low energy demands. Raw slurry enters the rear of the machine, flowing directly onto a rotating stainless steel screen drum where gravity separates the liquid fraction into a collecting tray. An integrated overflow mechanism automatically manages unsteady input levels to eliminate pump readjustments. The remaining fibrous solids pass between the screen drum and spring-loaded, rubber-coated compression rollers that squeeze out remaining moisture in a two-step process before a synthetic scraper discharges the stackable dry matter.

Technical Specifications

Motor Nominal Power: 1.5 kW
Electrical Parameters: Dual option 230 V 2-phase or 400 V 3-phase, 50 Hz
Throughput Capacity: 4 to 40 cubic meters per hour (typical cow manure range: 20 to 25 cubic meters per hour)
Dry Matter Output: Up to 30% dry matter content (fully stackable solids)
Mechanical Drive: Chain drive system equipped with a specialized gear reducer
Compression Assemblies: Spring-loaded, lever-arm mounted rollers featuring a flexible core and wear-resistant rubber coating
Connection Interfaces: 180x180 mm square flange inlet, 110 mm liquid outflow spigot, and 160 mm overflow/return spigot
Material Build: Full stainless steel construction for all parts encountering slurry, complete with a synthetic scraper and front discharge chute
