Agriprom Manure Separator Pro-4 Series

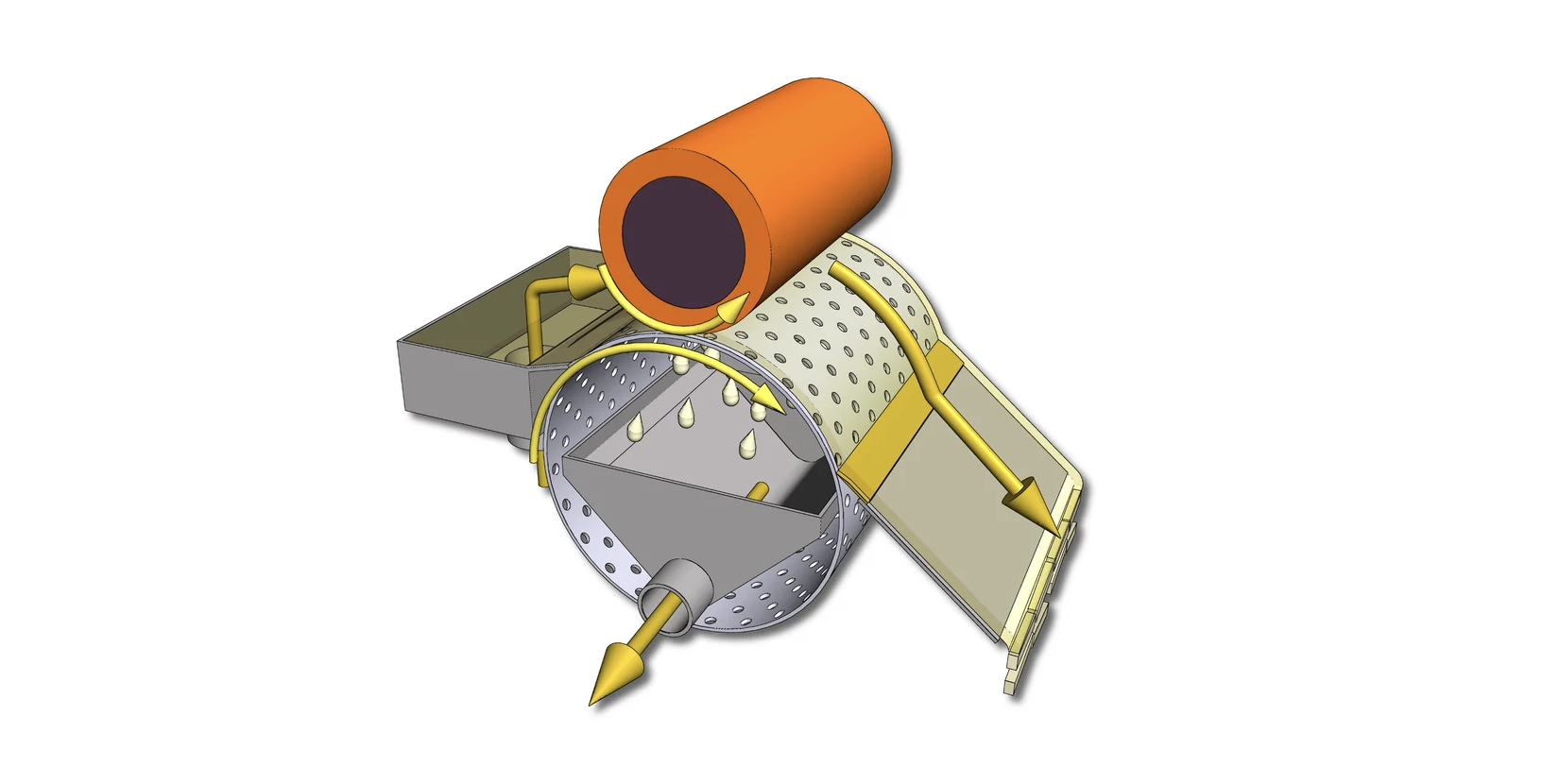

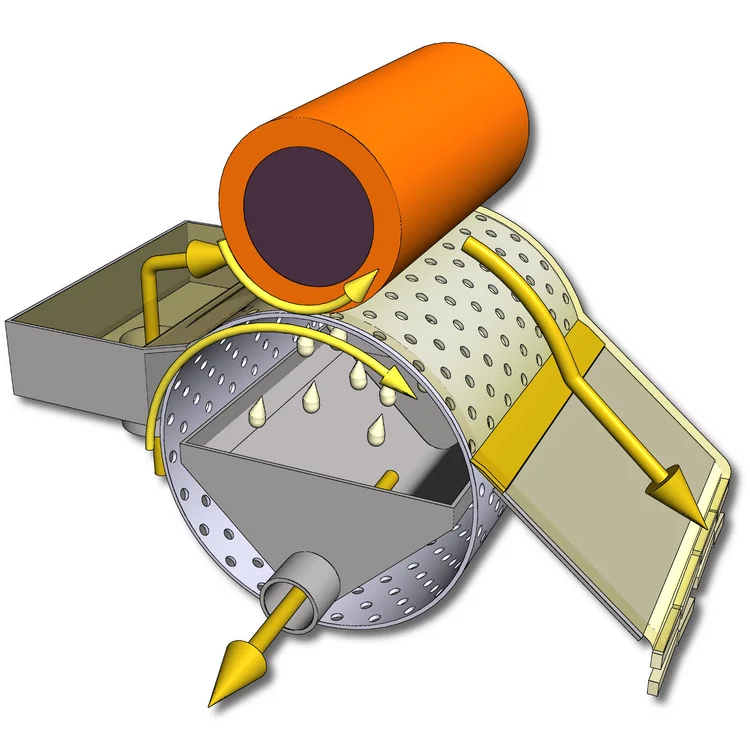

The Manure Separator Pro-4 Series is a high-efficiency separation system engineered to deliver low-energy solid-liquid separation of raw manure and biogas substrates. Built with a heavy-duty stainless steel casing, screen, and bolts, it features a large 400 mm drum screen that processes material with minimal maintenance costs. The design utilizes an expanded internal drum diameter to maximize surface area filtration, allowing high-throughput performance while operating on a highly efficient lower-kilowatt drive system.

TECHNICAL SPECIFICATIONS

Motor Nominal Power: 1.1 kW
Electrical Parameters: Dual option 230 V 2-phase or 400 V 3-phase, 50 Hz with an integrated cos-monitor monitoring relay
Screen Dimensions: 400 mm drum diameter with 1.5 mm slot gaps
Connection Interface: PN16 DIN2633 standard flanges for inlet, liquid outflow, and overflow/return spigots
Structural Weight: 190 kg total assembly weight
Material Build: Stainless steel casing, screen drum, and bolts mounted on a dedicated frame
